Introduction

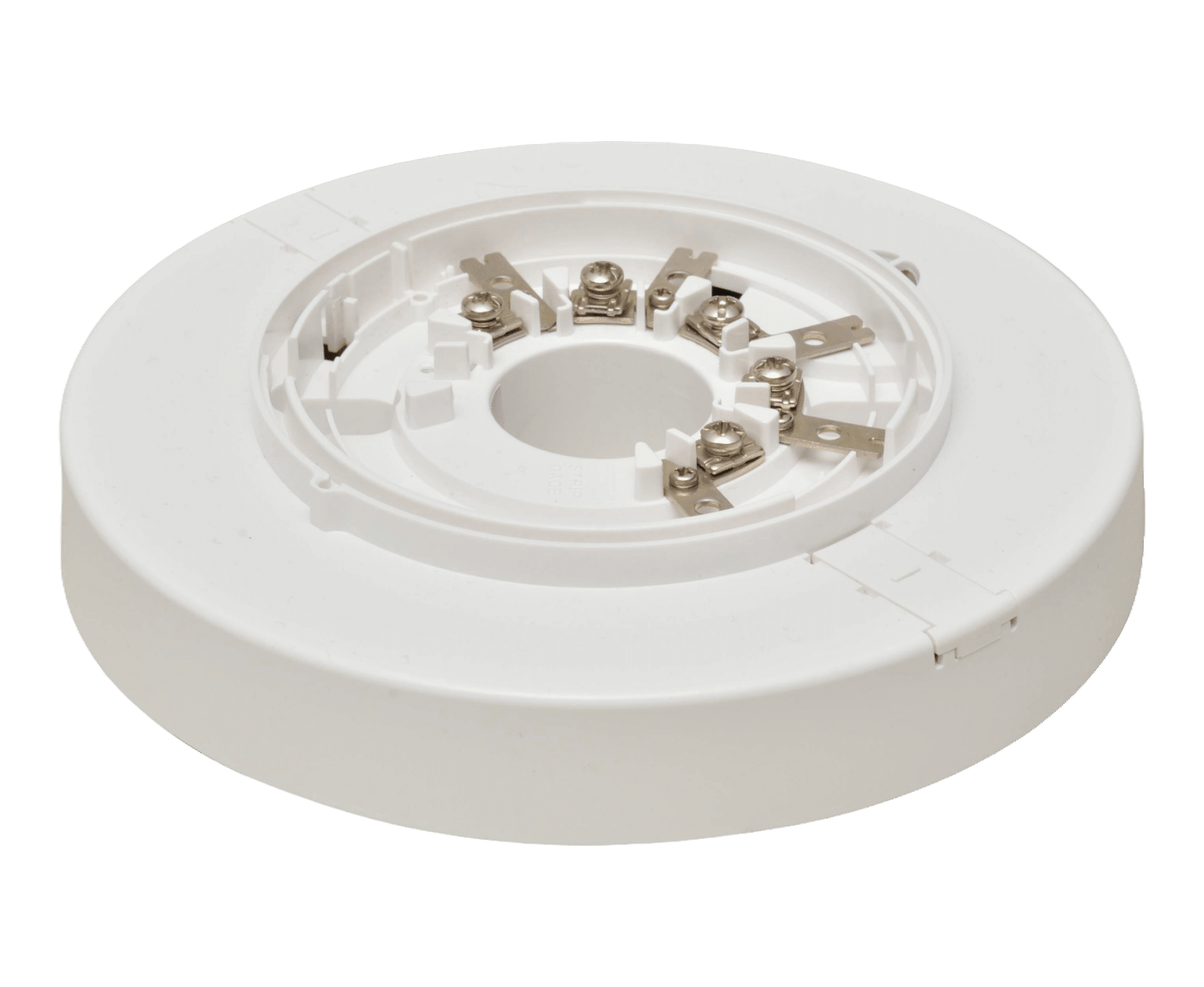

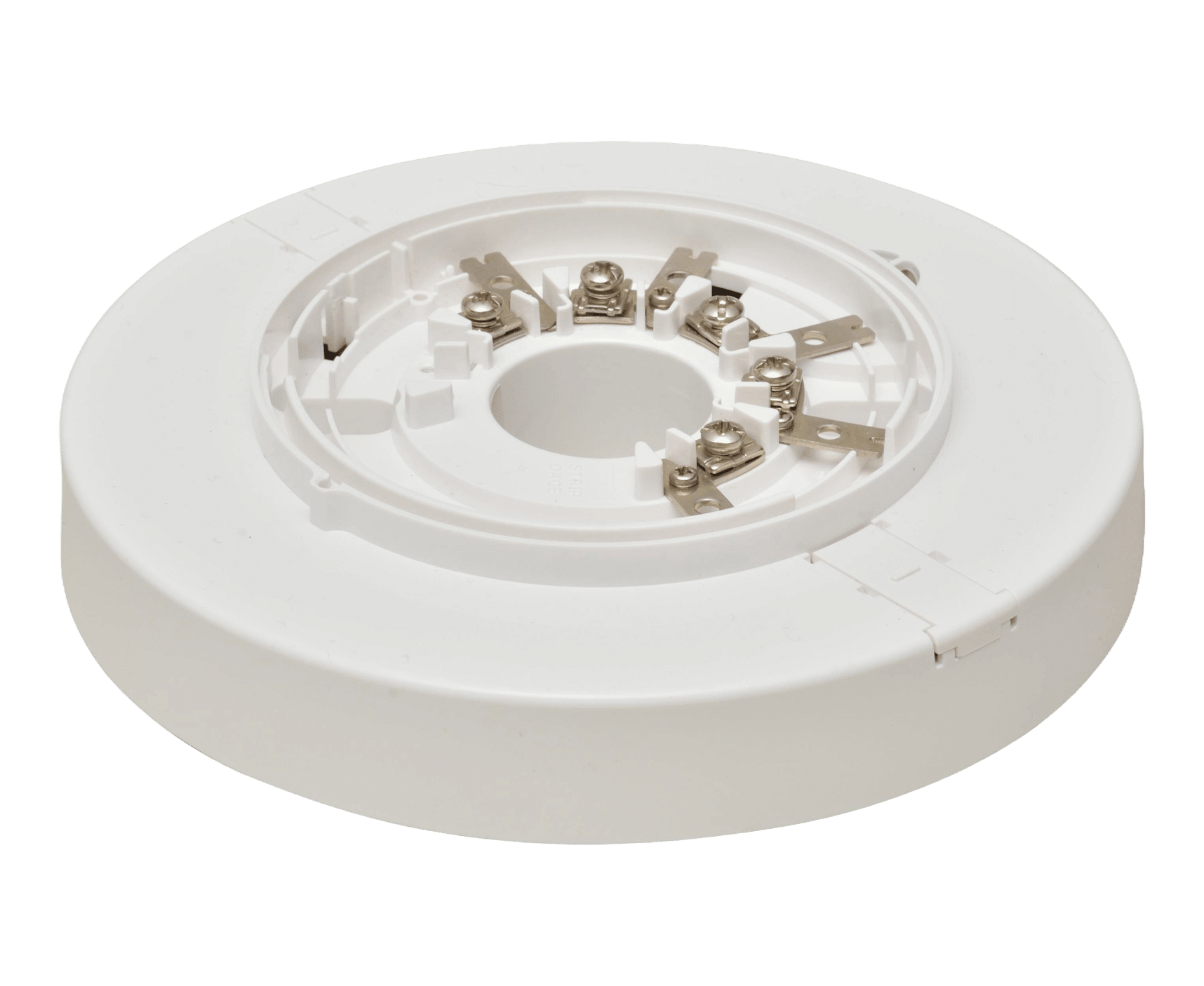

VDOT-S6 Base is a detector base with sounder, which is individually or collectively controlled by a control panel using addressable system.
The detector base has 4 sound patterns which are continuous, march, ANSI 3 temporal and 4 temporal patterns.
These patterns which are used in and around buildings can be selected by a control panel.
The sound pressure level at 10 feet from the base is over 85 dB. Up to 127 bases can be connected to a loop of the control panel.
The base is designed to be mounted to 3-1/2” octagonal, 4” octagonal or 4” square electrical box.
Features
- UL Listed base.
- Compatible with Velocity’s UL Listed detectors.
- Provides 4 sound patterns: continuous, march, ANSI 3 temporal and ANSI 4 temporal.
- Over 85 dB at 10 feet away.
- Address programmed using the VDOT-AD2 programmer.
- Contains a locking screw for tamper protection.
- Reduces wiring cost.
