Introduction
VDOT-DOP-SCI Dual Output Module with Short Circuit Isolator is an addressable dual output module that provides two dry contacts.
The contact rating is 2 A at 30 VDC.
The status of each dry contact is monitored and controlled by a control panel.
Features
- Two Form-C relay contacts.
- Switching capacity: 2A at 30VDC each.
- SCI function.
- Status indicator LED.
- Address settable from 001 to 254 using a dedicated programmer.
- Single loop address.
- Low standby current: 0.6mA.
- SEMS screws for easy wiring.

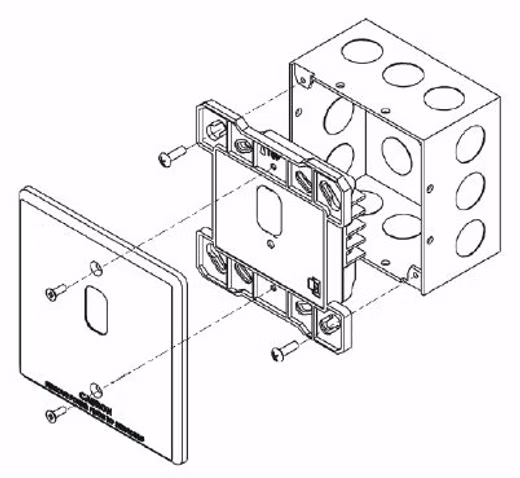

- Mounts to an optional 4-inch square electrical box.
