Introduction

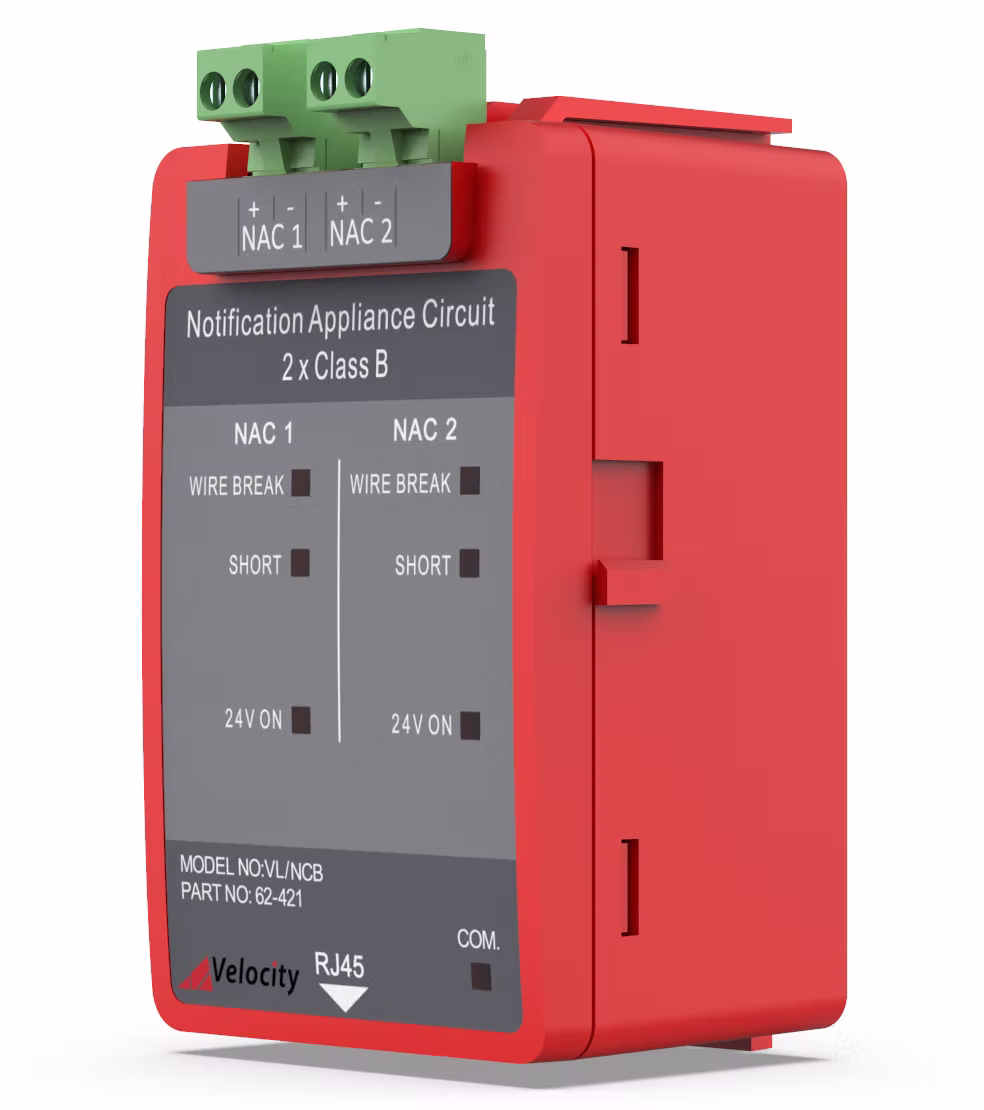

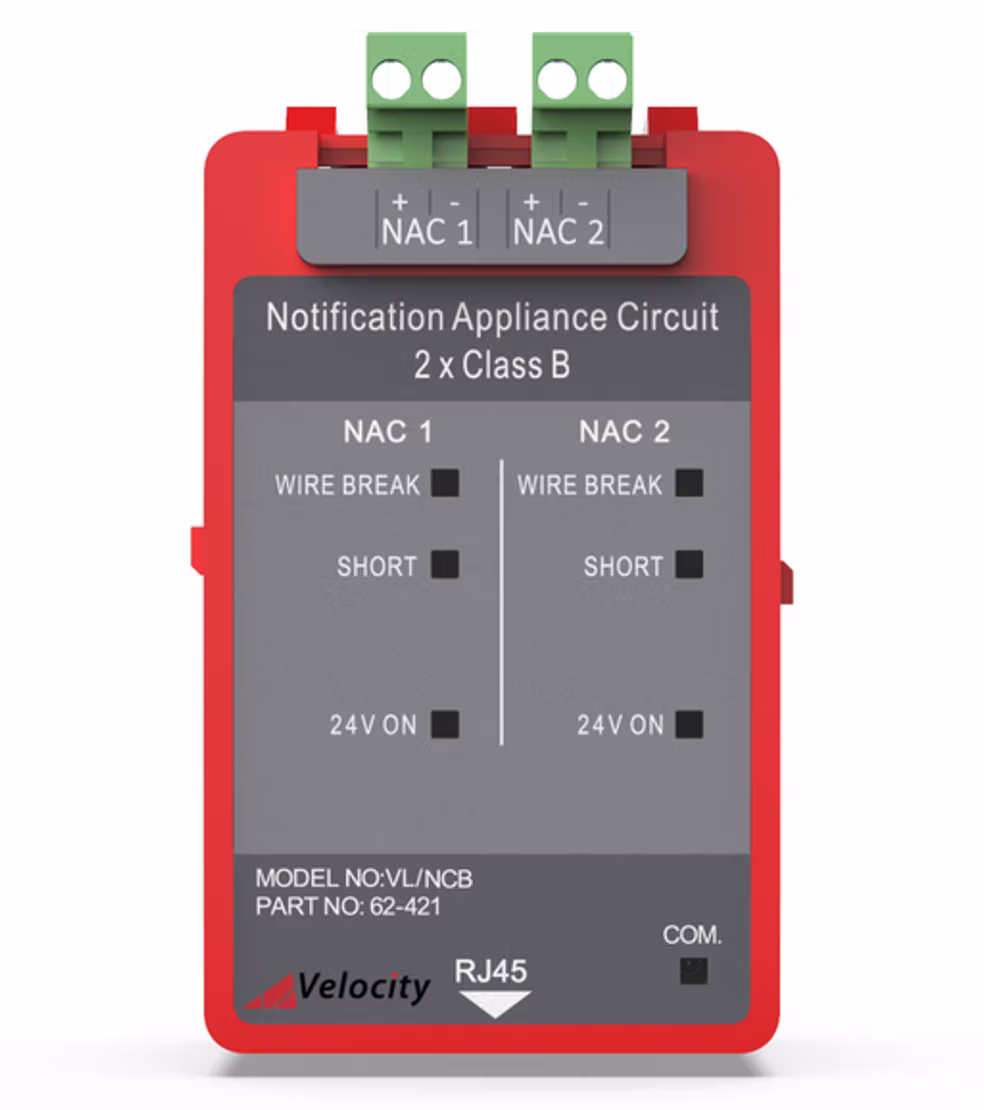

The plug-in VL-NCB module provides power for, and handles
communications to the non-addressable notification appliances.
It has two notification appliance circuits that can be wired in the class B configuration
Up to a maximum of 500mA can be connected to each class B circuit. Each circuit is supervised for open, short and earth trouble conditions and will report this status back to a Velocity MMP fire alarm control panel.
An additional feature that is included in the VL-NCB module is that it has the ability to program a circuit as a 24v auxiliary special application class B output, which can be used to provide power to external equipment.
Features
- Designed to meet UL864 10th Edition requirements.
- Built-in synchronisation circuitry, only compatible with Velocity devices.
- Can be programmed for either non-synchronised bells or synchronised horns/chimes and beacons.
- 2 x Class B NAC output circuits, with 500mA maximum load per circuit.
- Extensive front unit status indications.
- Each circuit can be programmed as a 24V auxiliary, with 500mA maximum load per circuit.
- Quick and easy to install by plugging the RJ45 cable into the module and control panel, with cable supplied.
- Power limited.
