Introduction

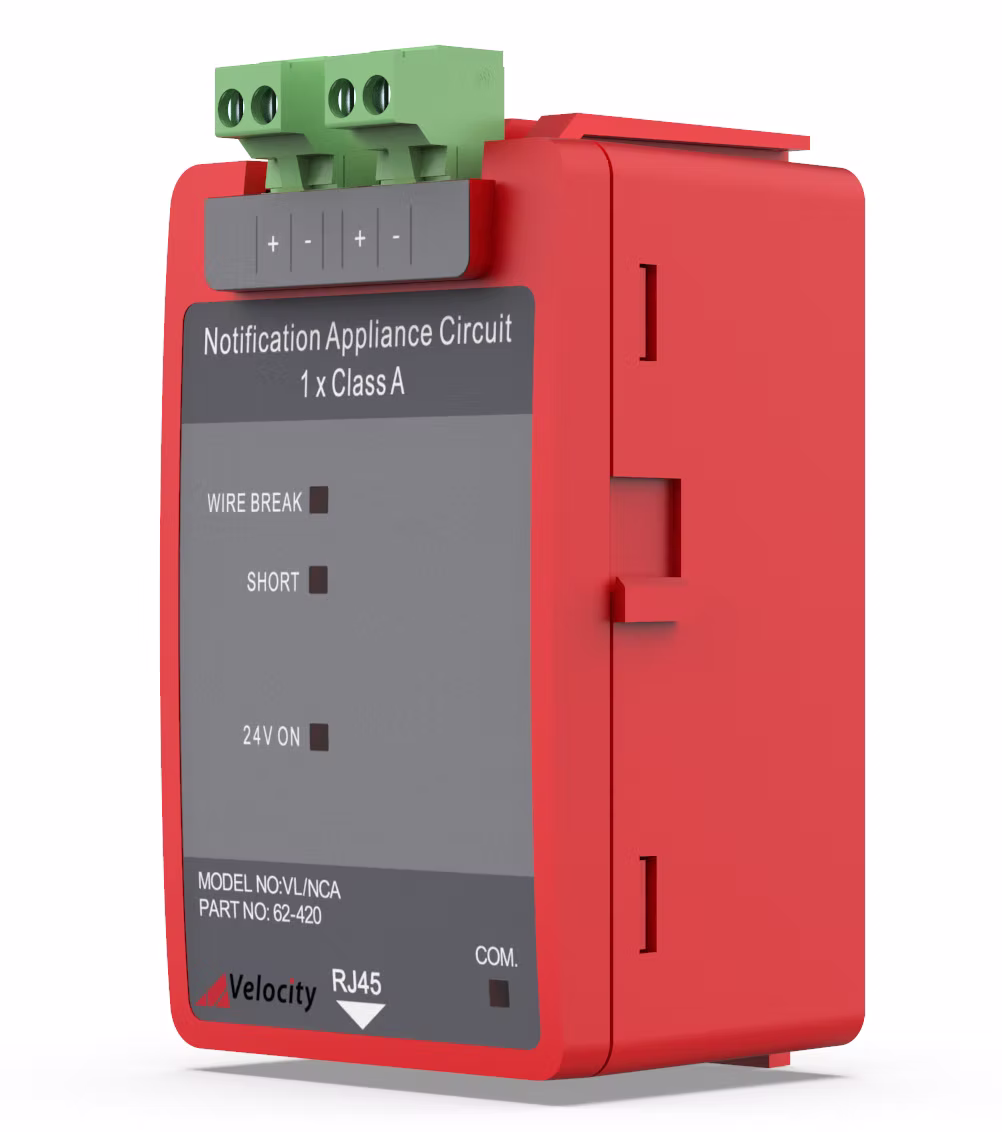

The plug-in VL-NCA module provides power for, and handles communications to the non-addressable notification appliances.
It has one notification appliance circuit that can be wired in the class A configuration.
Up to a maximum of 1A can be connected to a single class A circuit. The circuit is supervised for open, short and earth trouble conditions and will report this status back to a Velocity MMP fire alarm control panel.
An additional feature that is included in the VL-NCA module is that it has the ability to be programmed as a 24v auxiliary special application class A output, which can be used to provide power to external equipment.
Features
- Designed to meet UL864 10th Edition requirements.
- Built-in synchronization circuitry, only compatible with Velocity devices.
- Can be programmed for either synchronised bells or synchronised horns/chimes and beacons.
- 1 x Class A NAC output circuit, with 1A maximum load.
- Extensive front unit status indications.
- Can be programmed as a 24V auxiliary, with 1A maximum load.
- Quick and easy to install by plugging the RJ45 cable into the module and control panel, with cable supplied.
- Power limited.
