Introduction
The Velocity non-addressable indoor range of NAC devices are available in a variety of solutions to fit many requirements.

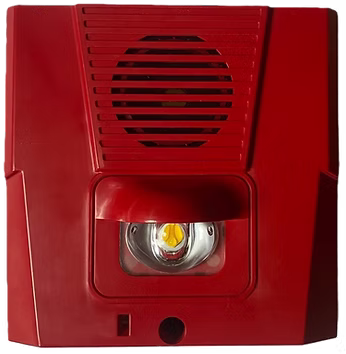

The VDOT-MS Multi-tone/Multi-Strobe NAC device has a UL decibel rating between 96dB – 102dB @ 10 ft or the conversion equivalent to 102dB – 110dB @ 1m, depending on the sound output setting.
The sounder can be combined with a intergrated high intensity white LED strobe with various candela LED output levels, the VDOT-MS strobe version has a choice of either 15cd, 30cd, 75cd 110cd output levels.
If you are requiring a device where it is key to have a minimal current draw, the fixed 15 candela low output device (VDOT-MS15) is the perfect solution.
The LED strobe considerably lowers the power consumption when the device is in alarm state, allowing more devices to be controlled and powered on the Velocity notification appliance loop/circuits.
The devices are flush wall mounted as standard be flush or surface wall mounted with the addition of a surface mounting back box.
They are also available in 2 colour options, red or white. Powered by 2-wire DC24V, these appliances are designed to be connected to, and activated by a UL listed Velocity control panel.
When multiple appliances are connected to the Velocity NAC, the sound and light between products on the same circuit area can be synchronised.
CURRENT DRAW @ 24vdc:
- 15 Candela 50mA per device
- 30 Candela 70mA per device
- 75 Candela 85mA per device
- 110 Candela 110mA per device
- 15 Candela (fixed) 32mA per device (VDOT-MS15 Only)
Features
- Designed to meet UL requirements.
- Compatible with all Velocity NAC circuits.
- Designed to be wall mounted.
- Indoor use only.
- Powered by 2-wire DC 24V.
- Can be installed in a standard 4-inch square double-gang box.
- Sounders on the same NAC can be synchronised.
Available Models:
VDOT-MS15/W Wall Mount Multi-tone/15 Candela LED Strobe (White)
VDOT-MS/R Wall Mount Multi-tone/15 Candela LED Strobe (Red)
